Toyota Corolla: Head restraints / Adjusting a head restraint

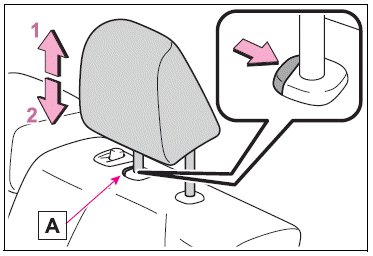

■ Front seats

1 Up
Pull the head restraints up.
2 Down
Push the head restraint down while pressing the lock release button A.

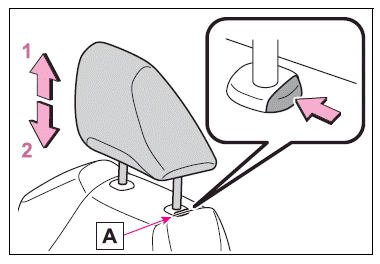

■ Rear outside seats (adjustable type)

1 Up
Pull the head restraints up.
2 Down
Push the head restraint down while pressing the lock release button A.

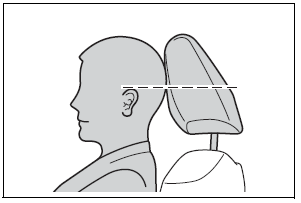

■Adjusting the height of the head restraints (front seats)
Make sure that the head restraints are adjusted so that the center of the head
restraint is closest to the top of your ears.

Head restraints are provided for all seats.
WARNING
■Head restraint precautions Observe the following precautions regarding the
head restraints. Failure to do so may result in death or serious injury...
■ Front seats
Pull the head restraint up while pressing the lock release button A.
■ Rear outside seats (adjustable type)
Pull the head restraint up while pressing the lock release button A...
